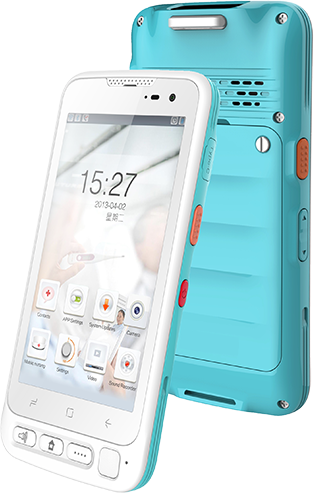

white+blue

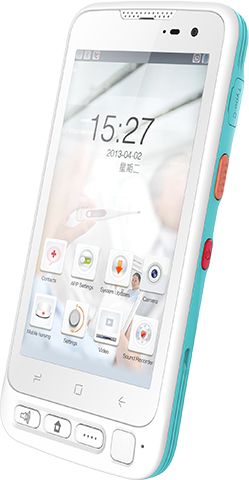

white+blue

V780

Handheld Terminal

CPU Processor

MT6765 2.35G+1.7G 4xA53+4xA53,W/SENSOR HUB
Display

5.0”（IPS 1280*720）
Camera

Rear 8.0MP(Option:1300MP,1600MP,2000MP）
RAM/ROM

3GB RAM + 32GB ROM (Option: 4GB RAM+64GB ROM)
Battery

4000mAh、(Option:8000mAh)
OS

Android 12

Application Scenarios

Logistics and Transportation
Warehouse
Express
Retail

定制咨询

V780 Mobile handheld scanning device,Equipped with zebra and Honeywell scanning，The scanning speed can be within 200ms

Excellent performance

V780 The latest eight core CPU makes your work faster; Support all Netcom, so that you can switch between operators at any time.

01

durable

IP67 waterproof, mil-std-810g anti drop and high and low temperature protection standards, make you feel more comfortable.
02

Charger

It supports cradle charging and can charge the battery separately.
03

RFID Scanner

900MHz UHF

Speed up, increase efficiency, empower

It is suitable for the application needs of diversified scenarios such as logistics and transportation, warehousing management, express delivery, retail and catering.

Specification summary

Touch Panel

Capacitive / toughened glass TP support glove touch/spray
Camera

Rear 8.0MP(Option:1300MP,1600MP,2000MP）
Basic Function

2G/3G/4G/BT/Wifi/GPS/3D accelerator,E-compass,proximtity sensor,Light sensor supported
GSM/3G/4G

GSM:B5/850;B8/900;B3/1800;B2/1900

CDMA 1X(Only support China Telecom)

3G:WCDMA B1/2100;B2/1900;B5/850;B8/900

3G:CDMA2000/EVDO(Only support China Telecom)
3G:TD/SCDMA(Only support China Mobile)

4G: FDD-LTE,B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28
4G: TDD: B38/B39/B40/B41(Only support China Mobile)
Wifi/BT

BT5.0； Support SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP. Support 2.4/5GHz A/B/G/N/ AC dual band Wi-Fi

Hardware

Sim card

Dual micro sim card；(T-FLASH card),max 128GB
Charger

USB Type-C
Earphone

3.5mm
Data interface

USB Type-C
Docking station charger

Support

Audio/Video

Audio coding

MPEG4
Video coding

3gp/H.263/MPEG4

Data collection & Option Module

Fingerprint

Support
NFC

Support 14443A Topza，14443A MIFARE UL，JIS 6319-4 Sony Felica，14443A/B NXP DESFire
RFID

LF/UHF RFID
F1/F2 Key

Support user-defined
Scanner

Zebra SE 4710 2D (Support Honeywell N6603)
LED

indicator light(red/green/blue)

Industrial & Reliability Design

Shake-proof

1-19Hz/1.0mm; 19-200Hz/1.0g
Dropproof

MIL-STD-810G/Method516.6/Procedure IV
Waterproof

Class 7 (SGS)
Dustproof

Class 6 (SGS)
Operating temperature

\ -20°C to 55°C
Storage Temperature

\ -40°C to 80°C
RH

5% to 95%
Operating Altitude

Max: 4,500 m（15,000 feet）
ESD

air discharge≤12000V ，contact discharge≤8000V

Size/Package/Warranty terms/OEM

SIZE

165mmx76mmx16mm
Single weight

510g
Warranty & OEM

support OEM, warranty 24 months（non-human damages）
Package

USB data cable x1, charger 5V/2A x1, user manual x1, kit x1

4710 Scanning Engine

Sensor Resolution 1280*800 pixels

Field of View Horizontal:42°,Vertical:28°

Focal Distance From front of engine:7.64 in.

Aiming LED 610nm LED
Honeywell 5703 Scanning Engine

MIPI，WHITE LED

Support OCR,EasyParse

Operation Temperature：-30℃-60℃

Motion Tolerance: 6m/s

Up to 60 frames/s

650nm high visibility red laser
UHF RFID

Module/Linear polarization antenna

Air interface protocol: EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C

Operating spectrum range: 902Mhz – 928Mhz，865MHz – 868MHz(Optional)

Output range:0-26 dBm

Output accuracy: +/- 1dB

Output power level: +/- 0.2dB

The label is sensitive and stable
Line polarization plate antenna：2-3m
Docking station charger

Option input5V/2A,output5V/1.8A, Support
Scanner

Option
Multisocket charger

Option，input 5V/8A,output5V/2A*4
Car charger

Option， input5V/2A，output5V/1.8A
Explosion-proof batteryt

Option，Class T4 ,3.8V,3000mAh(13.05Wh)
Thickened battery

Option， 8000mAh
Thickened Battery Cover

Option
Hand strap

Option
