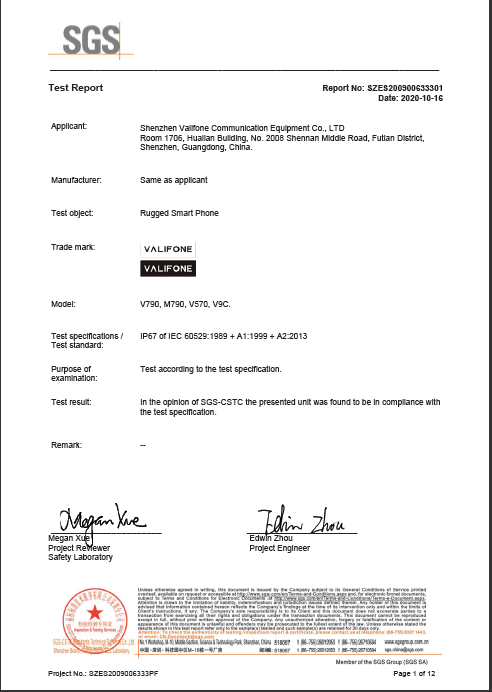

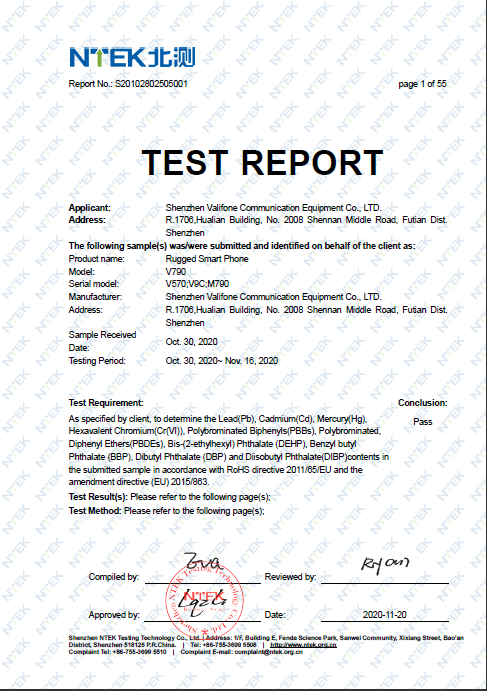

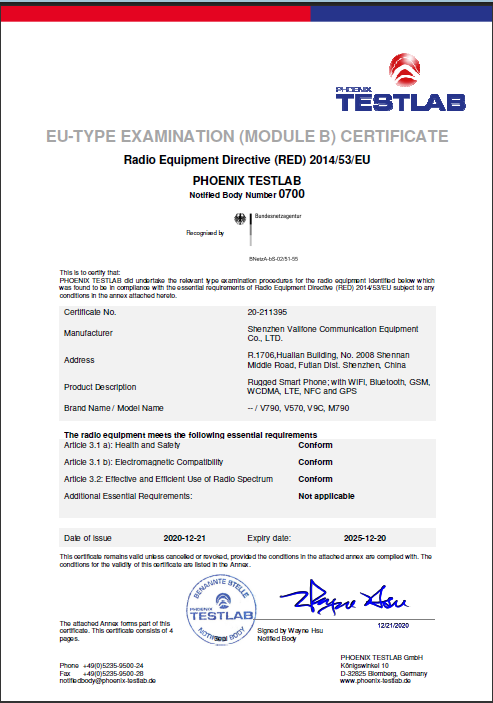

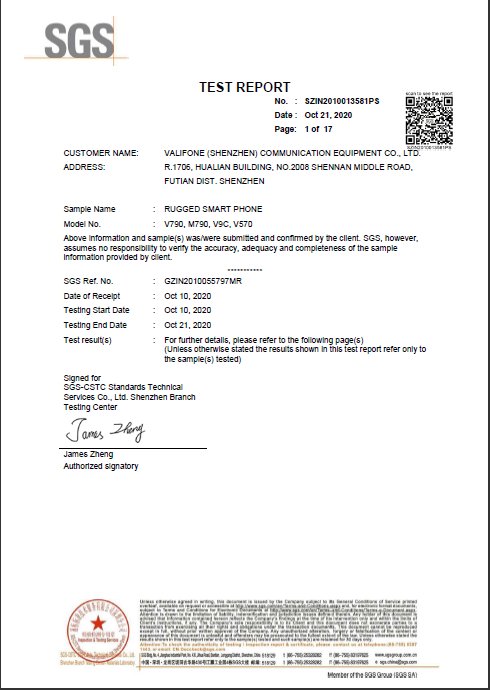

Certification
Download

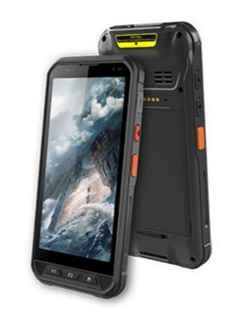

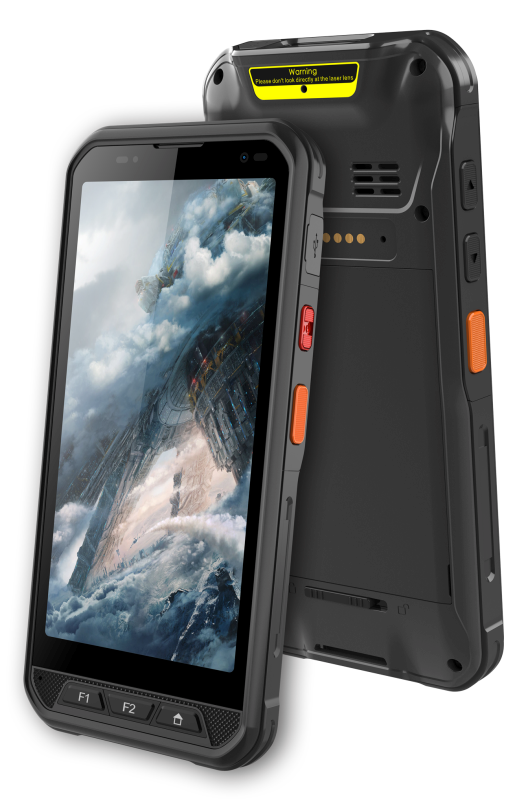

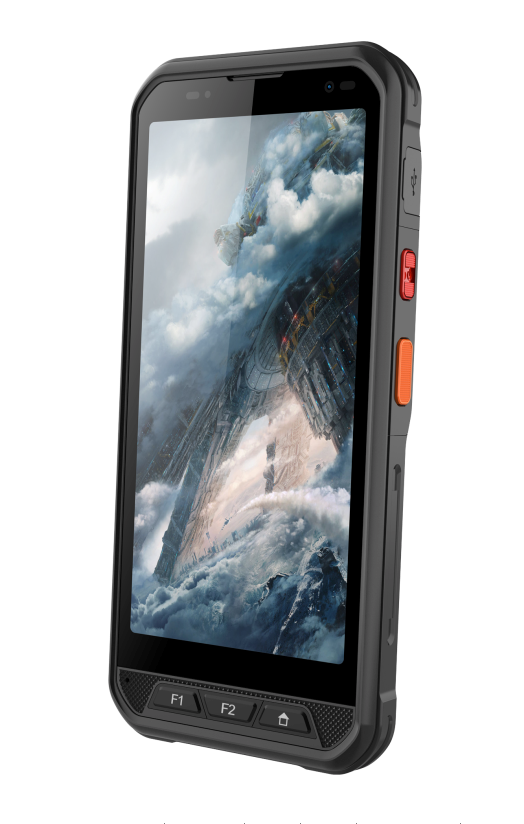

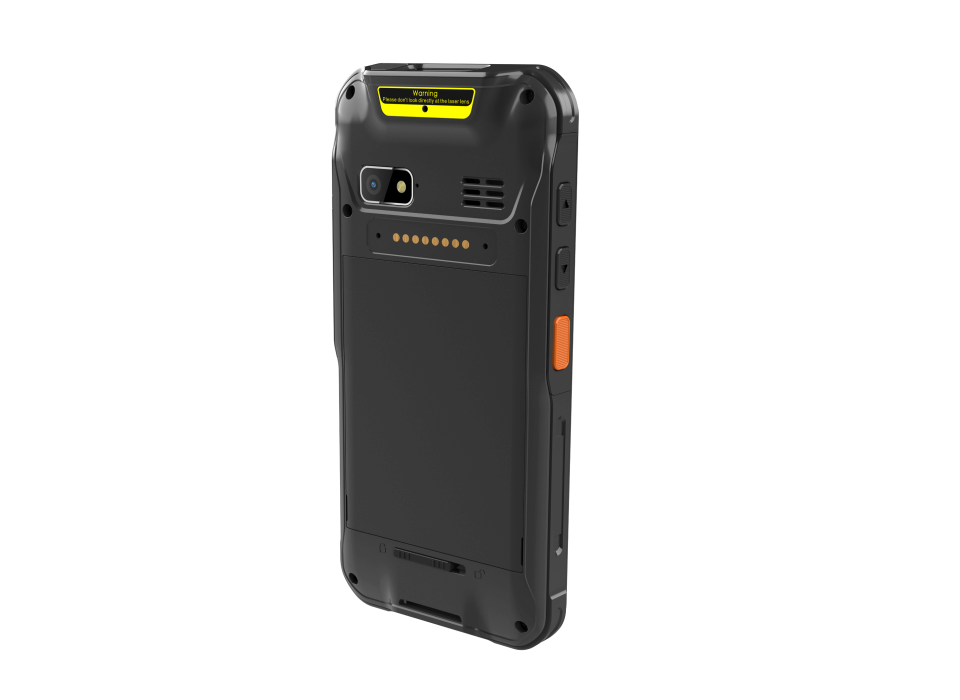

  • black

  • white

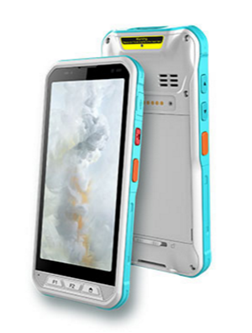

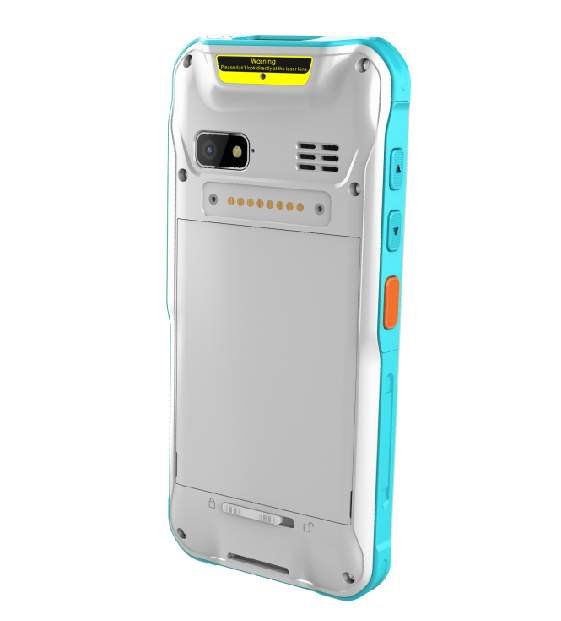

  • white

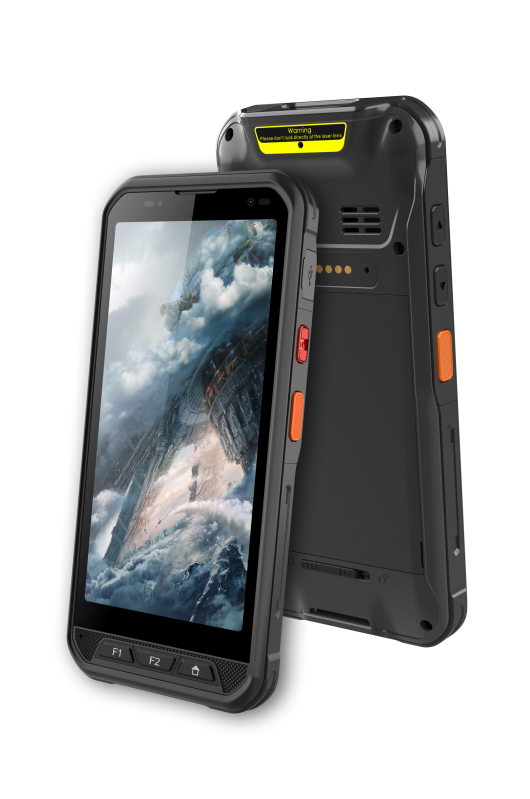

V790

Handheld Terminal

  • CPU Processor

    Qualcomm SDM450,1.8GHz A53 Quad Core 64bit

  • Display

    5.7inch 18:9 IPS 1440*720

  • Camera

    5.0MP+13.0MP

  • RAM/ROM

    3+32、4+64、6+128（Option）

  • Battery

    4800mAh

  • Os

    Android 9.0

Application Scenarios

  • Logistics and Transportation
  • Warehouse
  • Express
  • Retail
定制咨询

Craftsman spirit

V790 Mobile handheld scanning device,Equipped with zebra and Honeywell scanning，The scanning speed can be within 200ms

Excellent performance

提速，增效，赋能

适用于物流运输、仓储管理、快递收派件、零售餐饮等多样化场景的应用需求。

Specification summary
  • Touch Panel

    Capacitive / toughened glass TP support glove touch/spray

  • Camera

    5.0MP+13.0MP(Option:1600MP,2000MP）

  • Basic Function

    2G/3G/4G/BT/Wifi/GPS/3D accelerator,E-compass,proximtity sensor,Light sensor supported

  • GSM/3G/4G

    GSM:B5/B8/B3/B2

    CDMA 1X

    WCDMA B1/B2/B5/B8

    3G:CDMA2000/EVDO，TD/SCDMA

    FDD-LTE, FDD LTE

  • Wifi/BT

    (2.4GHz/5Ghz) 802.11 a/b/g/n ，BT v2.1+EDR/BT 3.0+HS / BlT v4.0 (LE)

Hardware
  • Sim card

    Dual micro sim card；(T-FLASH card),max 128GB

  • Charger

    USB Type-C

  • Earphone

    3.5mm

  • Data interface

    USB Type-C

  • 座充接口

    Support

Audio/Video
  • Audio coding

    MPEG4

  • Video coding

    3gp/H.263/MPEG4

Data collection & Option Module
  • Extension interface

    Support UART

  • NFC

    Support 14443A Topza, 14443A MIFARE UL, JIS 6319-4 Sony Felica,14443A/B NXP DES Fire etc

  • F1/F2 Key

    Support user-defined

  • Scanner

    Zebra SE 4710 2D (Support Honeywell N6603)

  • LED

    indicator light(red/green/blue)

Industrial & Reliability Design
  • Shake-proof

    1-19Hz/1.0mm; 19-200Hz/1.0g

  • Dropproof

    MIL-STD-810G/Method516.6/Procedure IV

  • Waterproof

    Class 7 (SGS)

  • Dustproof

    Class 7 (SGS)

  • Operating temperature

    \ -20°C to 55°C

  • Storage Temperature

    \ -40°C to 80°C

  • RH

    5% to 95%

  • Operating Altitude

    Max: 4,500 m（15,000 feet）

  • ESD

    air discharge≤12000V ，contact discharge≤8000V

Size/Package/Warranty terms/OEM

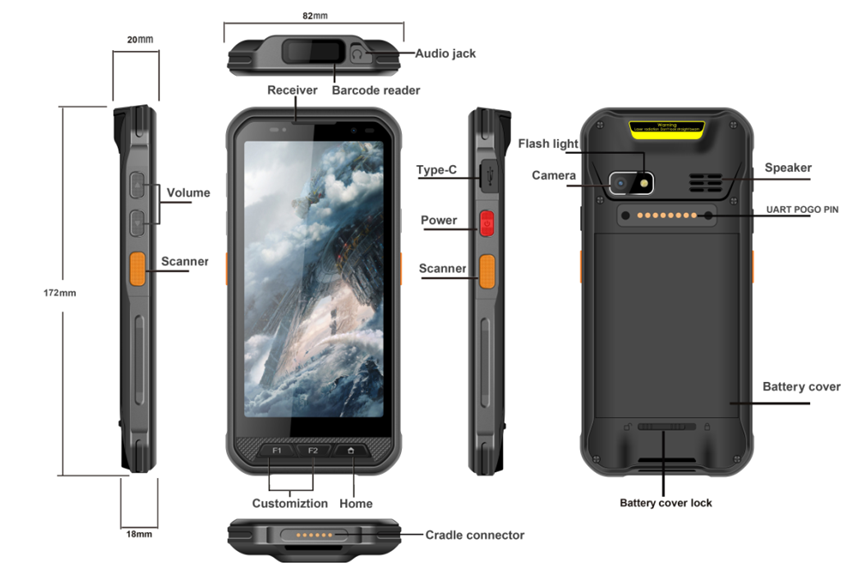

  • SIZE

    173x81x17.5mm

  • Single weight

    300克

  • Warranty & OEM

    support OEM, warranty 24 months（non-human damages）

  • Package

    USB data cable x1, charger 5V/2A x1, user manual x1, kit x1
