Product introduction
Specifications
Optional module

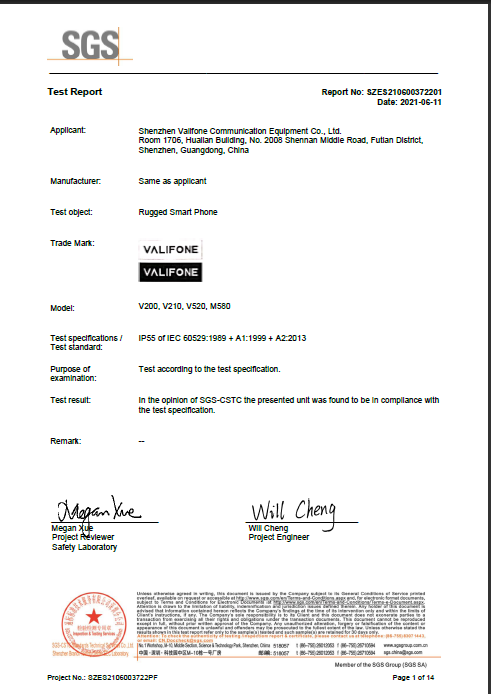

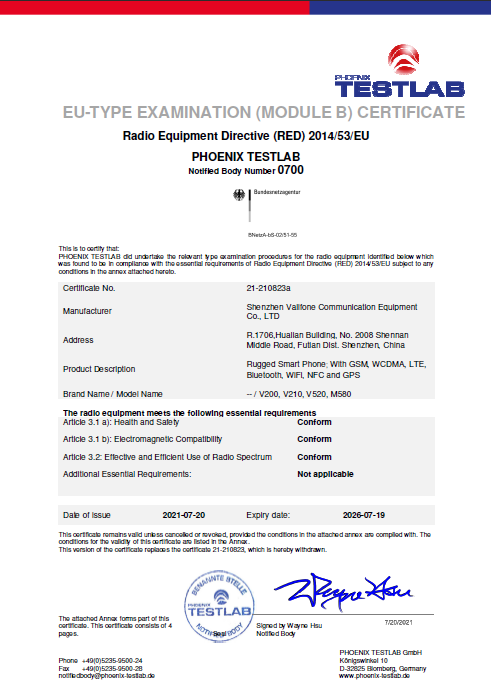

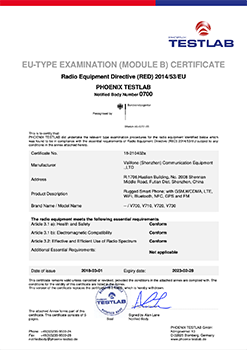

Certification
Download

  • black

  • black

  • black

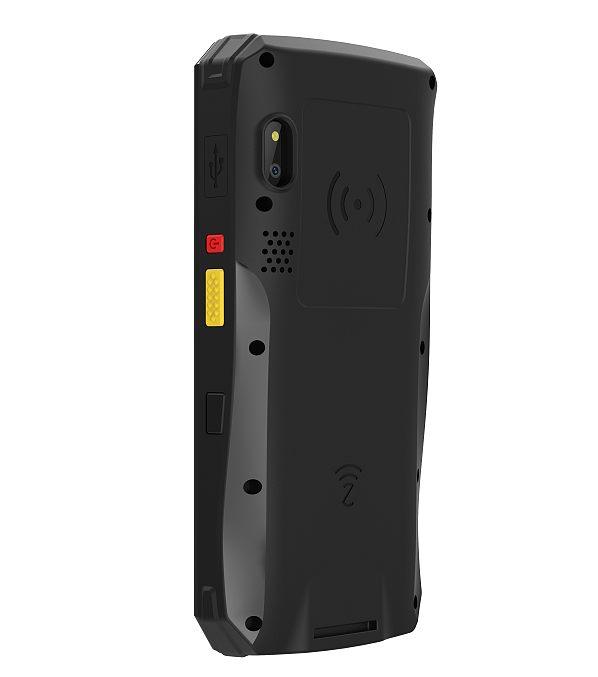

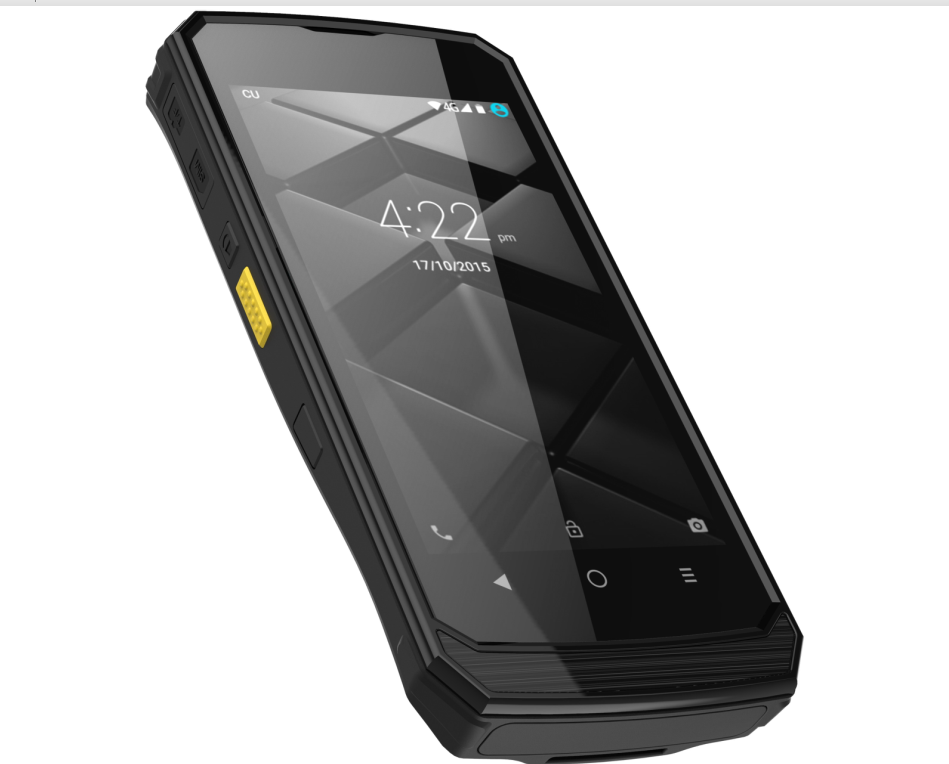

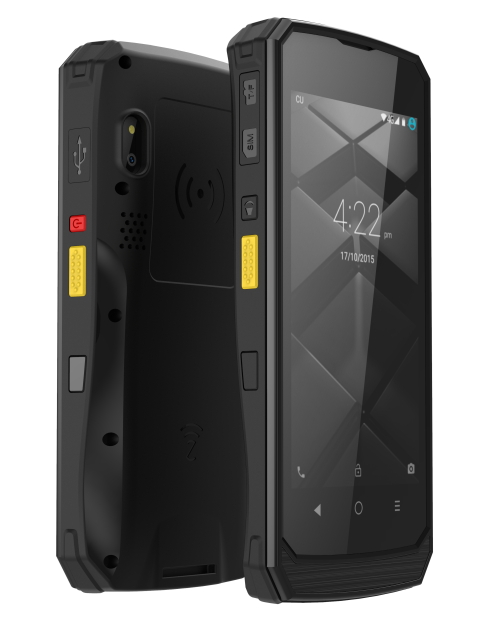

V200

Handheld Terminal

  • CPU Processor

    MTK6761 Quad core

  • Display

    5.0”（IPS 720*1280）

  • Camera

    Rear 8.0MP,（Option:1300MP,1600MP,2000MP）

  • RAM/ROM

    ROM+RAM,16GB+2GB Option: 4GB+64GB /3GB+32GB

  • Battery

    4000mAh

  • Os

    Android 10.0

Application Scenarios

  • Logistics and Transportation
  • Warehouse
  • Express
  • Retail
定制咨询

Craftsman spirit

V200 Mobile handheld scanning device,Equipped with zebra and Honeywell scanning，The scanning speed can be within 200ms

卓越性能

V200 搭载最新八核CPU，让您处理工作快人一步；支持全网通，让更让您在各运营商间随时切换。

提速，增效，赋能

适用于物流运输、仓储管理、快递收派件、零售餐饮等多样化场景的应用需求。

Specification summary
  • Touch Panel

    Capacitive / toughened glass TP support glove touch/spray

  • Camera

    Rear 8.0MP,（Option:1300MP,1600MP,2000MP）

  • Basic Function

    2G/3G/4G/BT/Wifi/GPS/3D accelerator,E-compass,proximtity sensor,Light sensor supported

  • GSM/3G/4G

    GSM:B5/850;B8/900;B3/1800;B2/1900

    3G:WCDMA B1/2100;B2/1900;B5/850;B8/900

    TD/SCDMA(Only support China Mobile)

    4G: FDD-LTE,B1/2100;B3/1800;B7/2600;B20/800

    TDD: B38/B39/B40/B41(Only support China Mobile)

  • Wifi/BT

    Support 2.4/5GHz A/B/G/N/ AC dual band Wi-Fi ;BT4.0+EDR； Support SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP

Hardware
  • Sim card

    Dual micro sim card；(T-FLASH card),max 128GB

  • Charger

    USB Type-C

  • Earphone

    USB Type-C

  • Data interface

    USB Type-C

  • Docking station charger

    Support

Audio/Video
  • Audio coding

    MPEG4

  • Video coding

    3gp/H.263/MPEG4

Data collection & Option Module
  • NFC

    Support 14443A Topza，14443A MIFAREUL，JIS 6319-4 Sony Felica， 14443A/B NXP DESFire

  • RFID

    LF/UHF RFID,空中接口协议 EPCglobal UHF Class 1 Gen 2 / ISO18000-6C

  • F1/F2 Key

    Support user-defined

  • Scanner

    Zebra SE 4710 2D (Support Honeywell N6603/H5703)

  • LED

    indicator light(red/green/blue)

Industrial & Reliability Design
  • Shake-proof

    1-19Hz/1.0mm; 19-200Hz/1.0g

  • Dropproof

    MIL-STD-810G/Method516.6/Procedure IV

  • Waterproof

    Class 5 (SGS)

  • Dustproof

    Class 5 (SGS)

  • Operating temperature

    \ -20°C to 55°C

  • Storage Temperature

    \ -40°C to 80°C

  • RH

    5% to 95%

  • Operating Altitude

    Max: 4,500 m（15,000 feet）

  • ESD

    air discharge≤12000V ，contact discharge≤8000V

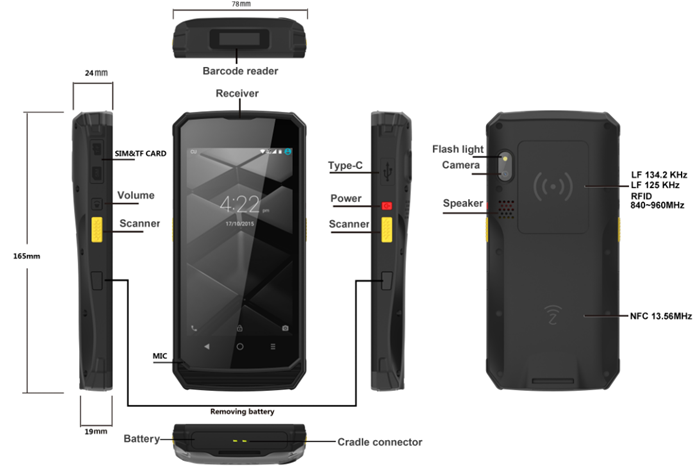

Size/Package/Warranty terms/OEM
  • SIZE

    165mmx78mmx23mm

  • Single weight

    296g

  • Warranty & OEM

    support OEM, warranty 24 months（non-human damages）

  • Package

    USB data cable x1, charger 5V/2A x1, user manual x1, kit x1
