Product introduction
Specifications
Optional module
Certification
Download

  • black

  • black

  • black

P9008

Handheld Terminal

  • CPU Processor

    MT6765 2.35G+1.7G 4xA53+4xA53,W/SENSOR HUB

  • Display

    8.0”（IPS 800*1280)

  • Camera

    Front: 5.0M, auto focus Rear:13.0M, PDAF, flashlight

  • RAM/ROM

    3GB RAM+32GB Flash, (Option: 4GB RAM+64GB Flash)

  • NFC

    Basic configuration, built-in antenna; NXP chip

  • Os

    Android 12

Application Scenarios

  • Logistics and Transportation
  • Warehouse
  • Express
  • Retail
定制咨询

匠心之作

P9008 Industrial three prevention computer

卓越性能

P9008 搭载最新八核CPU，让您处理工作快人一步；支持全网通，让更让您在各运营商间随时切换。

提速，增效，赋能

适用于物流运输、仓储管理、快递收派件、零售餐饮等多样化场景的应用需求。

Specification summary
  • Touch Panel

    Capacitive / toughened glass TP support glove touch/spray

  • Camera

    Front: 5.0M, Rear:13.0M,(Option:,1600MP,2000MP）

  • Basic Function

    2G/3G/4G/BT/Wifi/GPS/3D accelerator,E-compass,proximtity sensor,Light sensor supported

  • GSM/3G/4G

    GSM:B5/850;B8/900;B3/1800;B2/1900

    CDMA 1X(Only support China Telecom)

    3G:WCDMA B1/2100;B2/1900;B5/850;B8/900

    3G:CDMA2000/EVDO(Only support China Telecom)

    3G:TD/SCDMA(Only support China Mobile)

    4G: FDD-LTE,B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28

    4G: TDD: B38/B39/B40/B41(Only support China Mobile)

  • Wifi/BT

    BT5.0； Support SDAP, HSP, HFP, AVRCP, A2DP, OPP, PBAP. Support 2.4/5GHz A/B/G/N/ AC dual band Wi-Fi

  • Battery

    8000mAh、(detachable)

Hardware
  • Sim card

    Dual micro sim card；(T-FLASH card),max 128GB

  • Charger

    USB Type-C

  • DC

    3.5mm DC

  • Data interface

    USB Type-C

  • Docking station charger

    Support

Audio/Video
  • Audio coding

    MPEG4

  • Video coding

    3gp/H.263/MPEG4

Data collection & Option Module
  • NFC

    Basic configuration, built-in antenna; NXP chip, support ISO/IEC 14443 A, ISO/IEC 14443 B, MiFare S50, S70, reading distance 0-5cm, depending on tag types

  • F1/F2 Key

    Support user-defined

  • Scanner

    Zebra SE 4710 2D (Support Honeywell N6603)

  • PTT Key

    Support

  • NFC

    indicator light(red/green/blue)

Industrial & Reliability Design
  • Shake-proof

    1-19Hz/1.0mm; 19-200Hz/1.0g

  • Dropproof

    MIL-STD-810G/Method516.6/Procedure IV

  • Waterproof

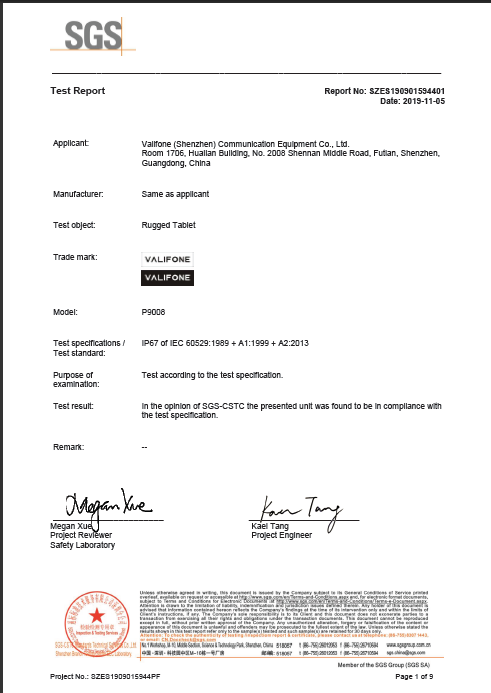

    Class 8 (SGS)

  • Dustproof

    Class 6 (SGS)

  • Operating temperature

    \ -20°C to 55°C

  • Storage Temperature

    \ -40°C to 80°C

  • RH

    5% to 95%

  • Operating Altitude

    Max: 4,500 m（15,000 feet）

  • ESD

    air discharge≤12000V ，contact discharge≤8000V

Size/Package/Warranty terms/OEM
  • SIZE

    295mm*196mm*76mm

  • Single weight

    780g

  • Warranty & OEM

    support OEM, warranty 24 months（non-human damages）

  • Package

    USB data cable x1, charger 5V/2A x1, user manual x1, kit x1
